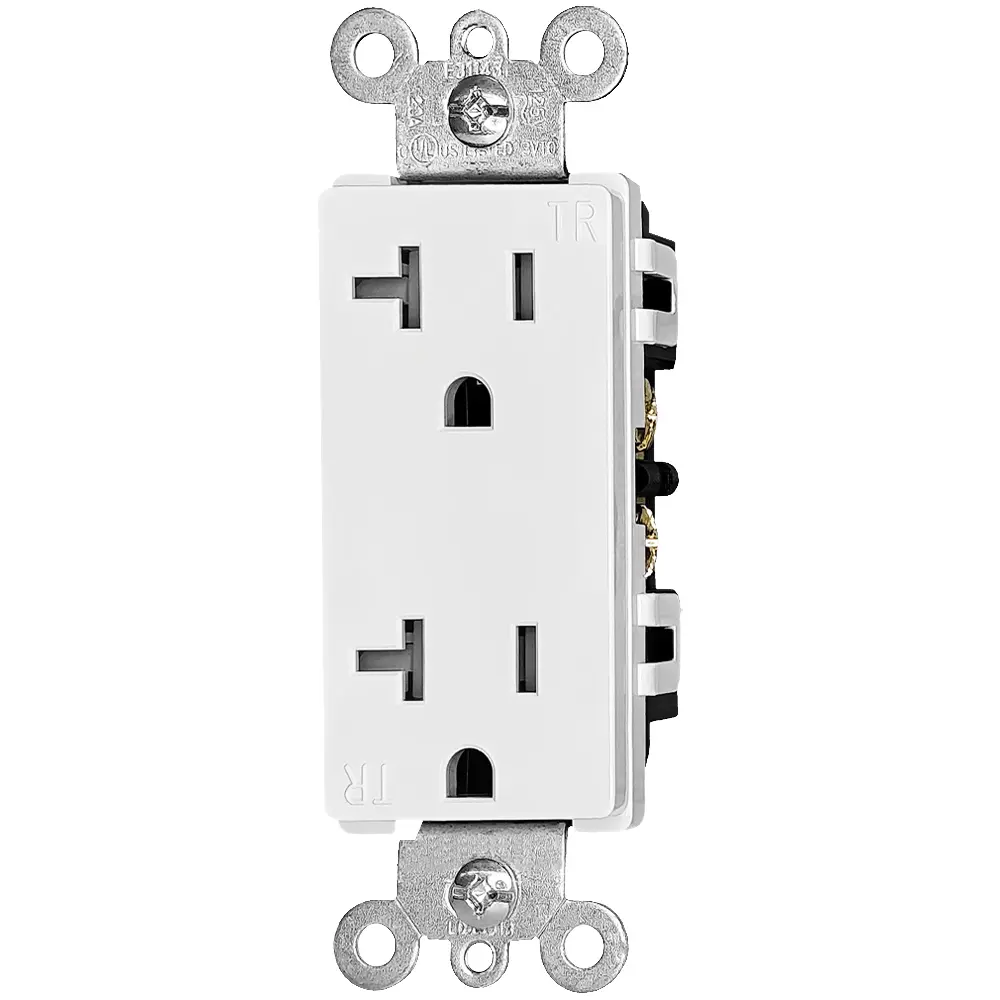

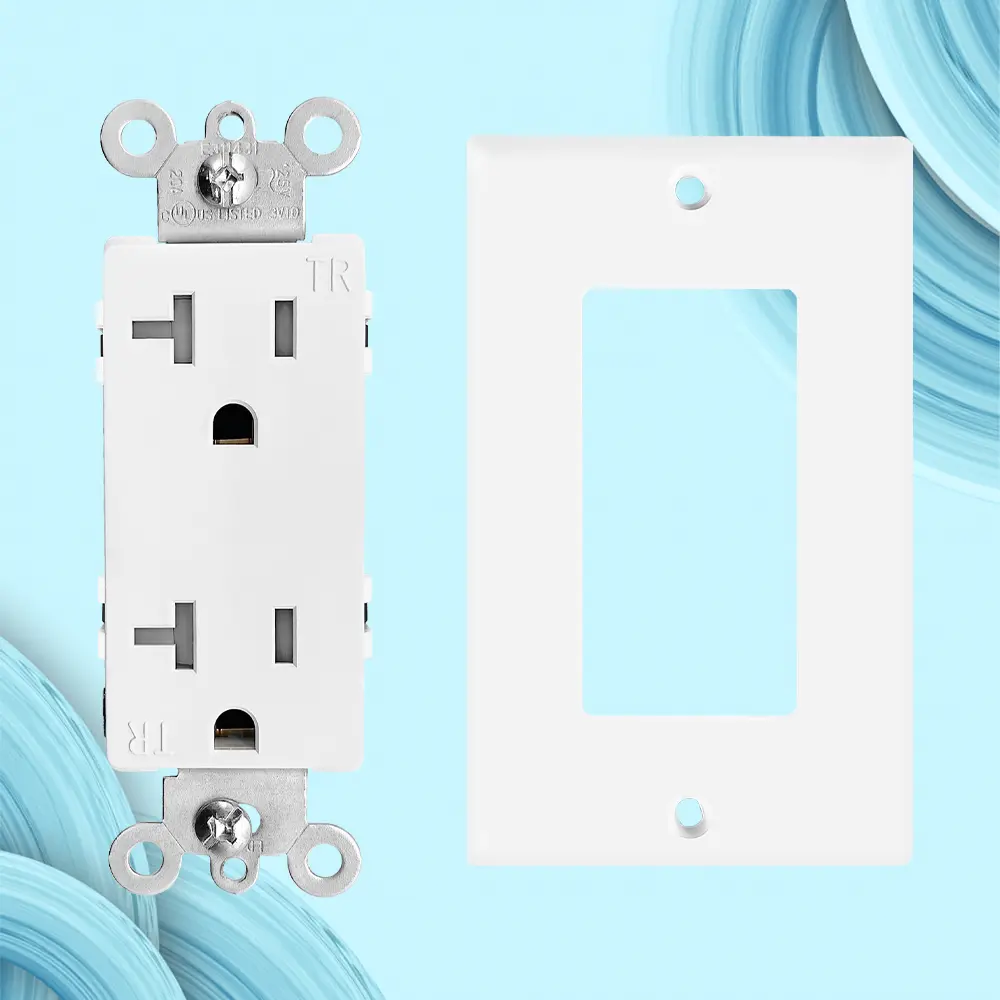

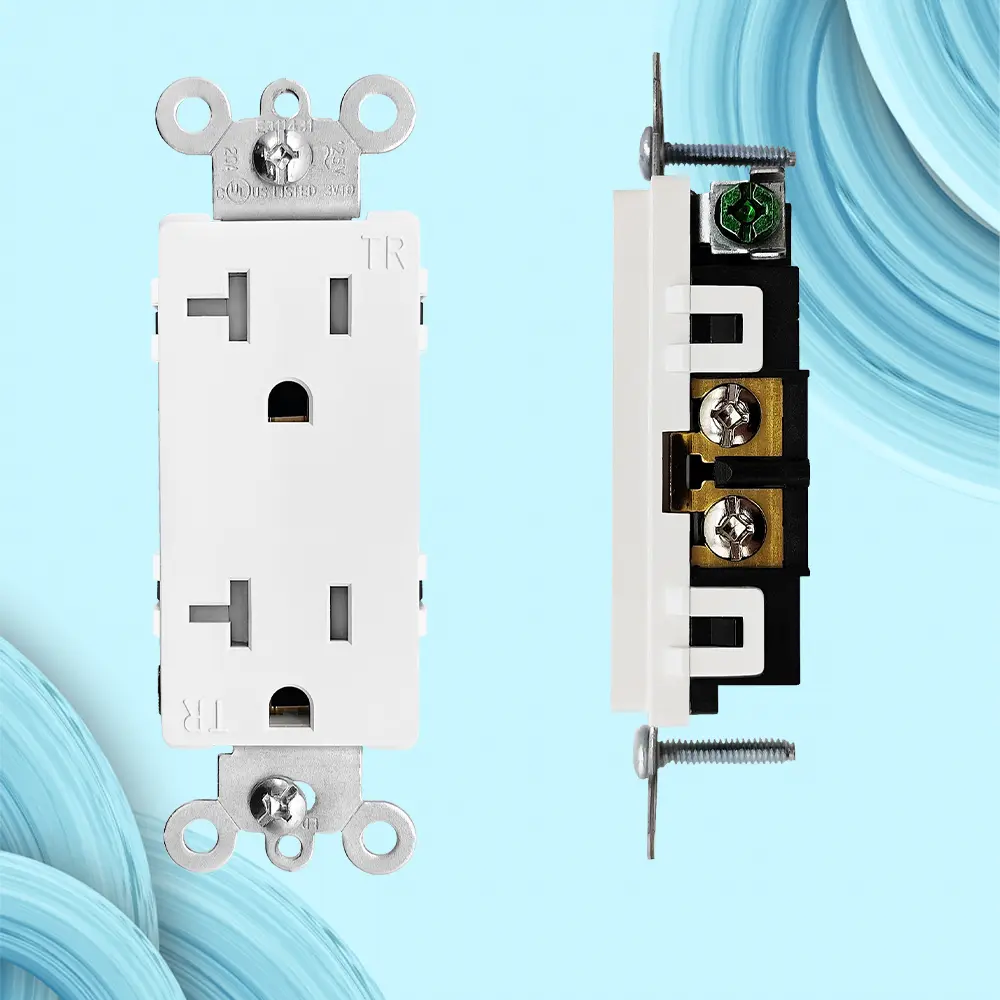

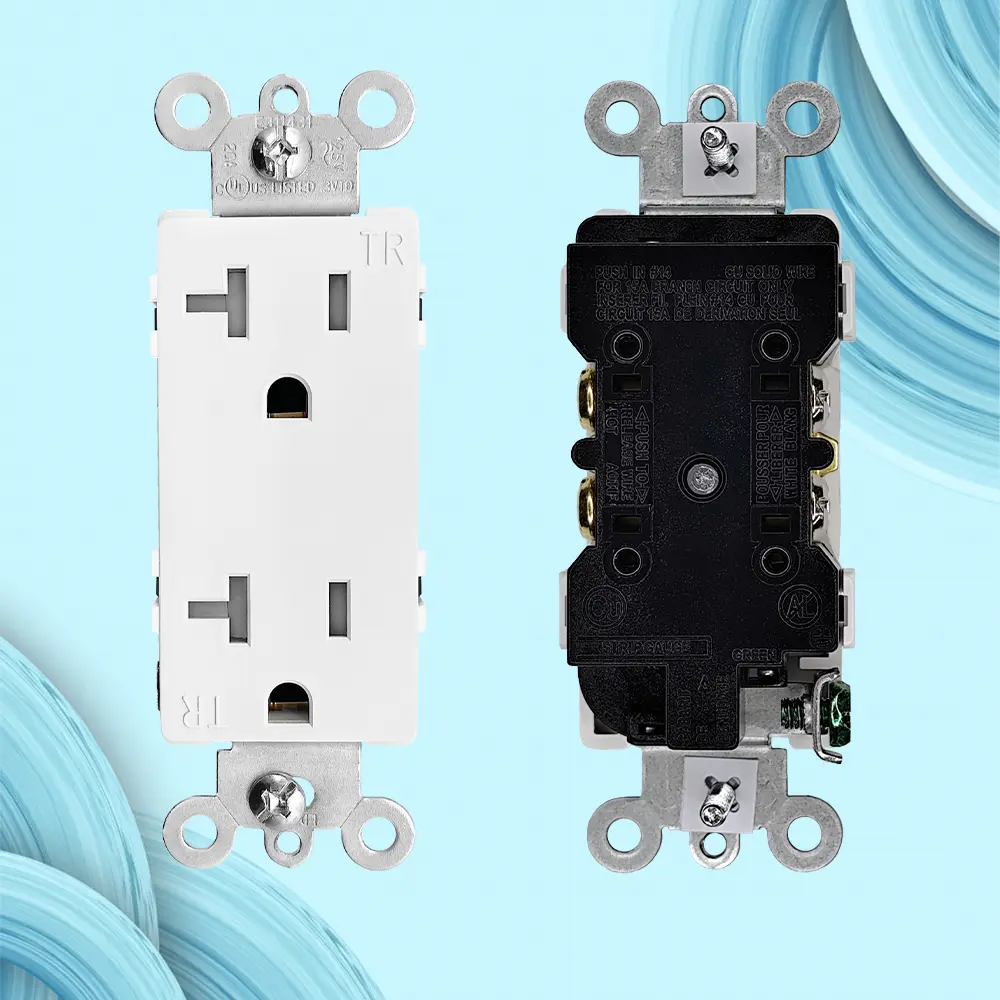

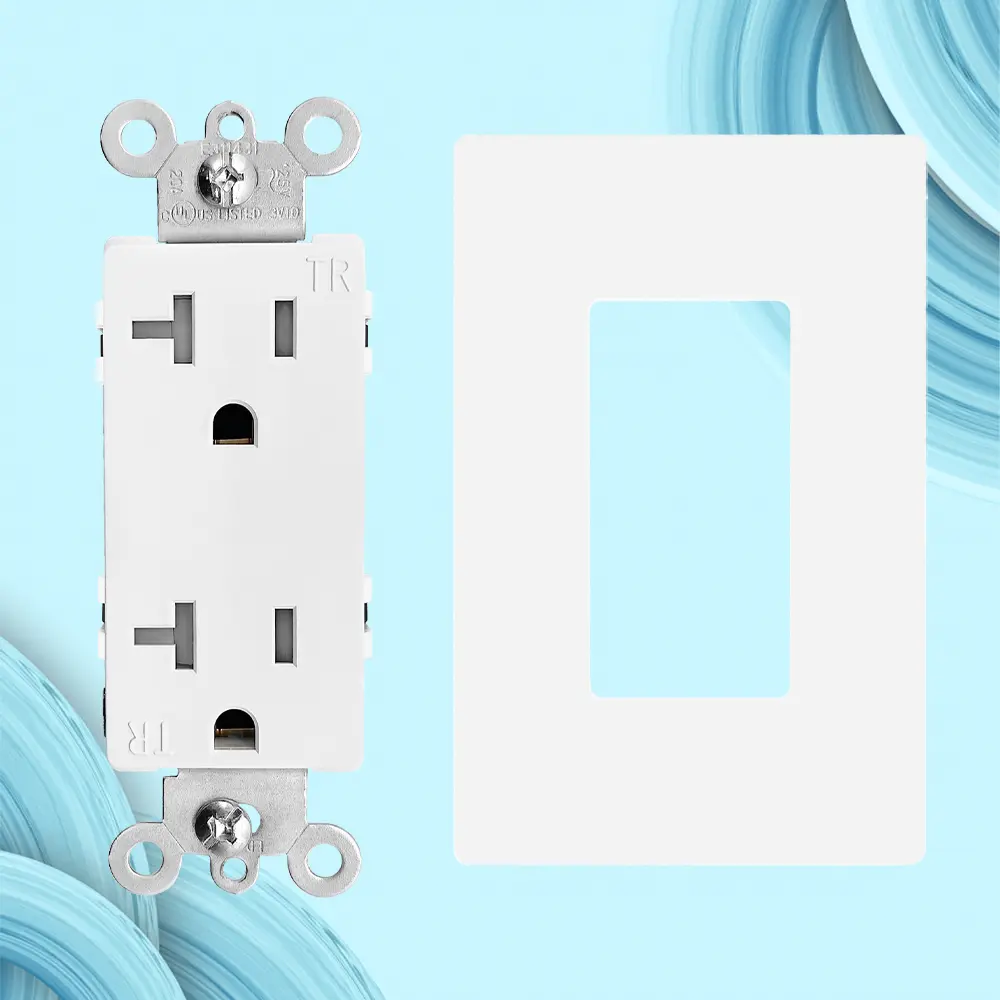

OEM 20A125V, 5-20R, Decora Duplex TR Receptacle UL Manufacturer, Supplier

1. Heavy-Duty Brass Power Contacts for Maximum Conductivity and Plug Retention.

2. Heavy-Gauge, Rust-Resistant Steel Mounting Strap.

3. Certificationï¼šUL/ cUL

Send Inquiry

Product Description

Product Specifications

Part No.	LD-3013TR
Description	Standard Duplex Receptacle
Color	White, Ivory, Black, Almond, Grey, Brown
Rating	20A, 125VAC
NEMA	5-20R or 5-20P
Pole	2
Wire	3
Grounding	U Grounding Screw
Termination	Quick-wire Push-in & Side
Dielectric Voltage	Withstands 1500V for 1 minute
Face Material	Thermoplastic PC
Body Material	Thermoplastic PC
Strap Material	Steel

Code Compliance

UL Listed UL 498, UL file #E311431

ROHS comply

Material Characteristics

Environmental: Flammability, UL-94, Rated V0

Operating Temperature: -40°F to 149°F (-40°C to 65°C)

Key Features

Terminal screws accept up to No. 12 AWG copper wire

Double-wipe power contacts for reliable conductivity

Impact resistant thermoplastic construction

Heavy-gauge, galvanized steel mounting strap

Double-wipe ground contacts for long-term retention

Tri-Drive ground, terminal and mounting screws

Captive mounting screws for easy installation

Limited one-Year Warranty

Packing Details

Pack-out: 1/20/200

G.W.: 13 KGS

MEAS: 42.5 * 29 * 23.5 CM

Frequently Asked Questions

What is the electrical rating for the LD-3013TR?

The LD-3013TR is rated for 20 Amp and 125VAC, suitable for standard commercial and residential applications.

Is this receptacle UL listed?

Yes, it is UL Listed under UL 498 with file number #E311431, ensuring it meets strict safety standards.

What wire size is compatible with the terminals?

The terminal screws are designed to accept up to No. 12 AWG copper or copper-clad wire.

What does "Tamper Resistant (TR)" mean for this product?

The TR designation indicates it has a built-in shutter mechanism that prevents foreign objects from being inserted into the slots, increasing safety for children.

What colors are available for the duplex receptacle?

This model is available in a variety of colors including White, Ivory, Black, Almond, Grey, and Brown to match your interior design.

What materials are used in its construction?

The body and face are made from high-impact resistant thermoplastic PC (Polycarbonate) with a heavy-gauge galvanized steel mounting strap.
