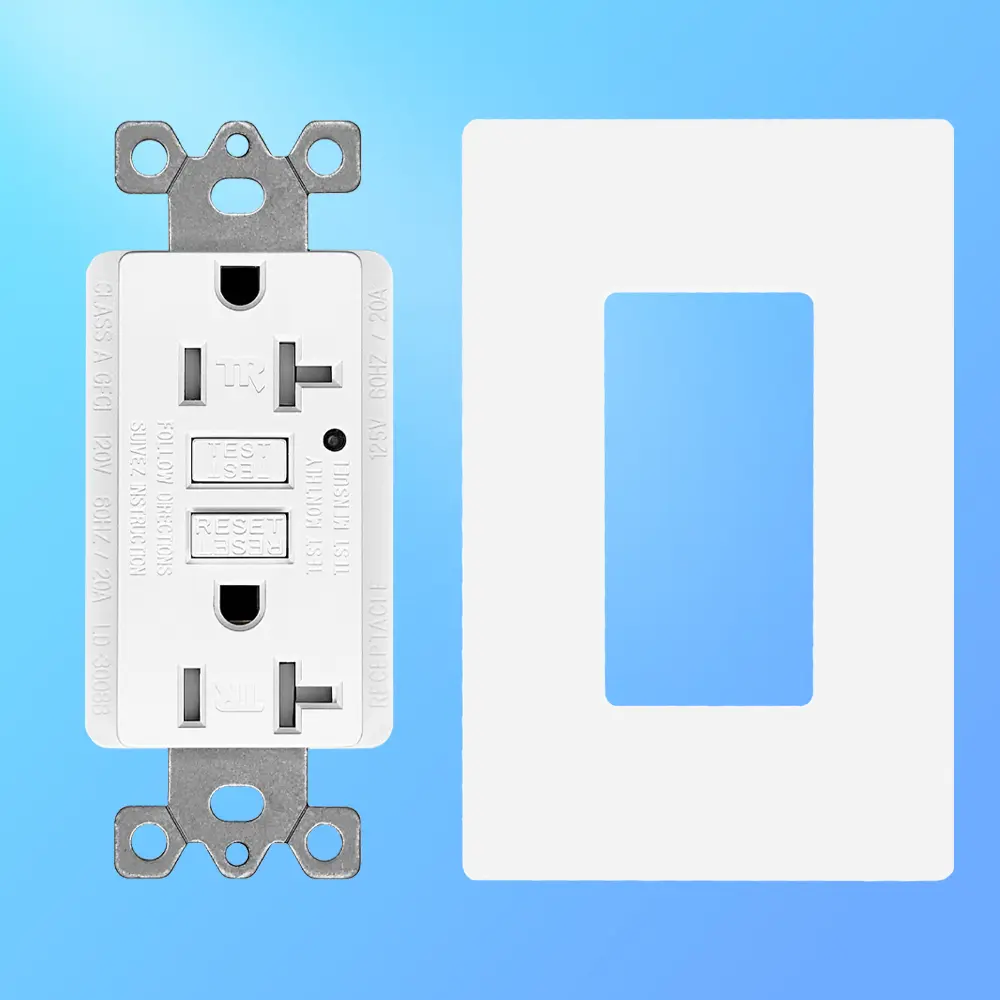

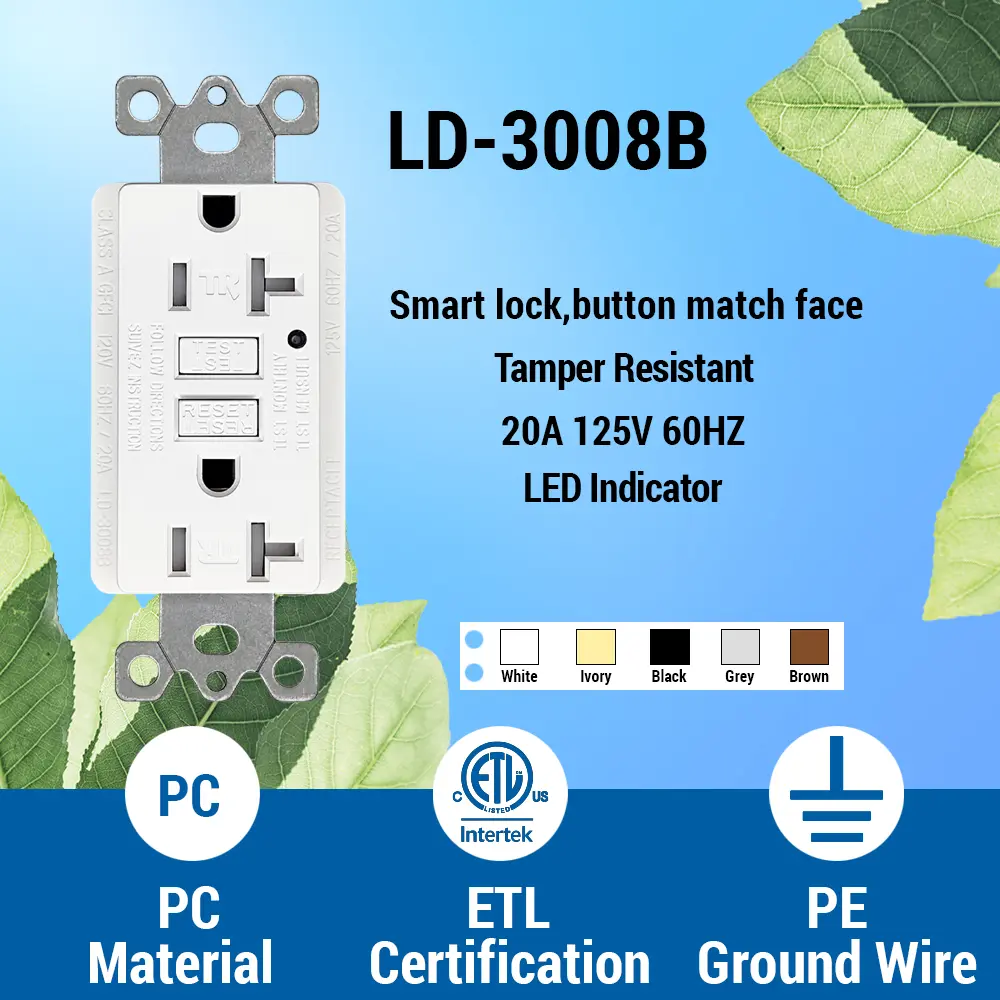

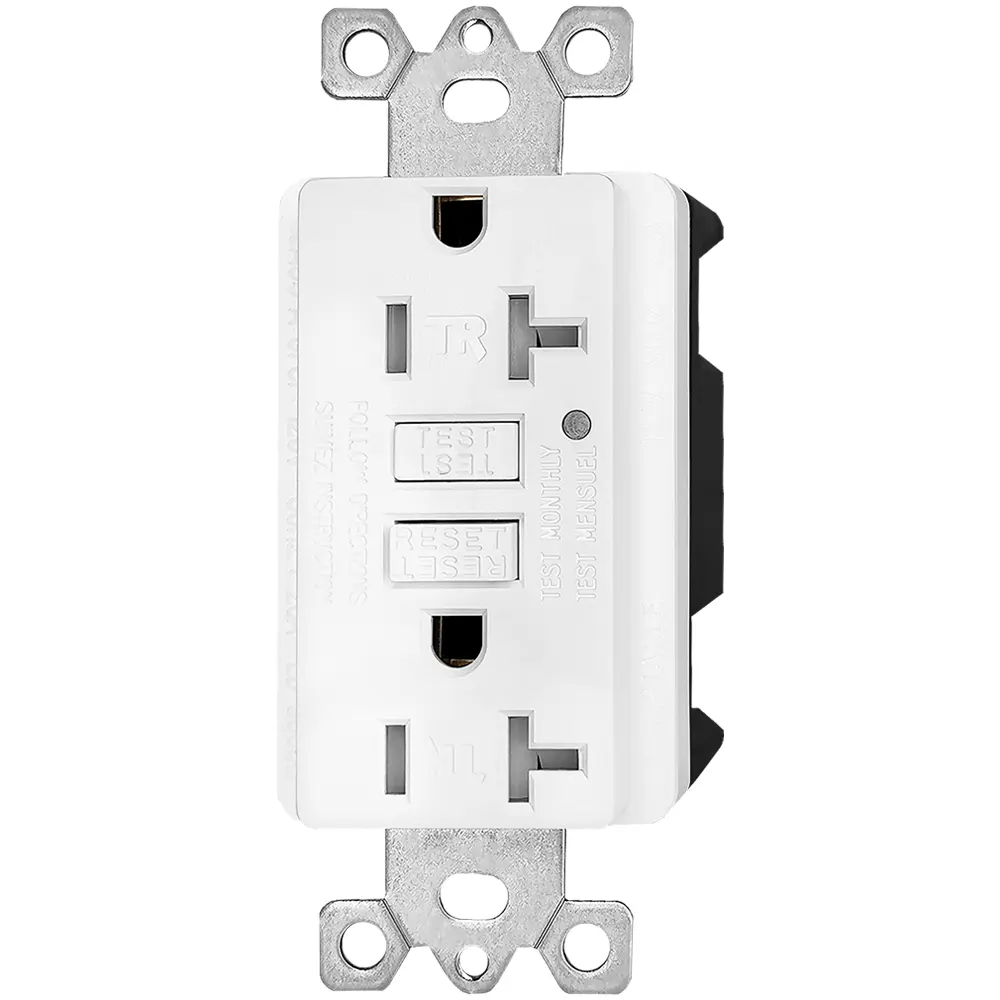

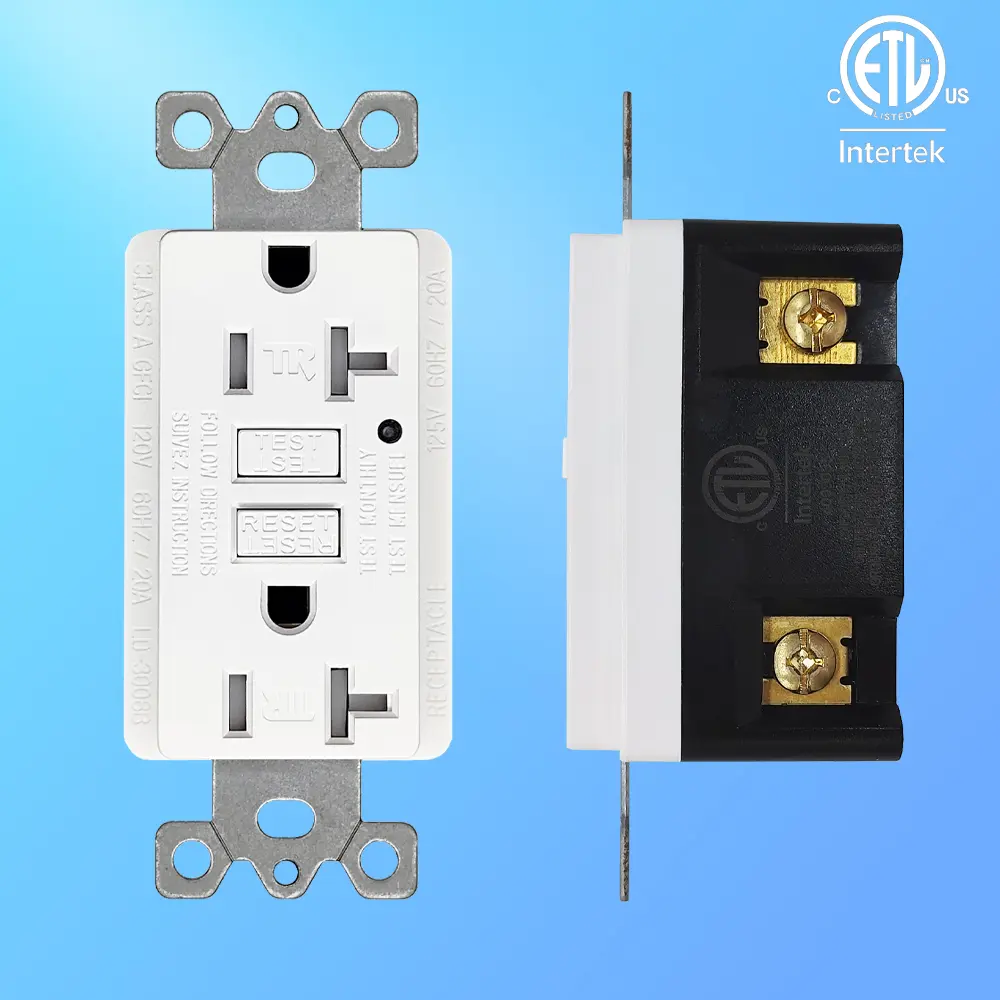

Wholesale 20 Amp Duplex GFCI Outlet with Safety Shutters and LED Self-Test Function, Residential Grade LD-3008B Manufacturer, Manufacturers

1. A GFCI can directly replace a standard electrical outlet and be installed in place of an old outlet without any modifications to the wiring.

2. Tamper-Resistant: Automatic shutter system prevents young children from inserting unwanted objects into the outlets

3. Certificationï¼šETL/cETL

Send Inquiry

Product Description

Part No.	LD-3008B
Description	20 Amp Duplex GFCI Outlet with Safety Shutters and LED Self-Test Function, Residential Grade
Color	White, Ivory, Black, Grey, Brown
Amp	20Amp
Volt	125V AC
Hertz	60Hz
NEMA	5-20R
Pole	2
Wire	3
Termination	Back and side 20Amp feed-thru
Face material	Thermoplastic
Body material	Thermoplastic
Strap material	Steel
Standards & Certifications	ETL/cETL

Constructed with premium high-impact resistant thermoplastic materials and rational structure design, ensures superior strength and durability.

Green LED Indicator: Know the GFCI working status at a simple glimpse.

Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted.

Self-Detection System: Automatically detects every 3 hours. Features a red indicator alarm and automatic power cut-off in case of device failure.

Frequently Asked Questions

● What does the Green LED indicator signify?

The green indicator light shows that the product is in normal working condition and the socket has power output.

● How often does the GFCI perform a self-test?

The device starts detection 30 minutes after power-on, and then automatically conducts a self-test once every approximately 3 hours.

● What should I do if the red indicator light flashes?

A flashing red light or a solid red light usually indicates a device failure or an alarm status. The system may cut off output power for safety.

● Is this outlet suitable for residential use?

Yes, this is a residential grade 20 Amp Duplex GFCI Outlet designed for home safety and compliance.

● What materials are used for the construction of this GFCI?

The face and body are made of high-impact resistant thermoplastic, while the strap is made of durable steel to ensure long-term reliability.

● Does it provide protection during a self-test?

Yes, it provides continuous ground fault protection and can detect and trip on a fault even while a self-test is in progress.
